A 0.6-V 9.38-Bit 6.9-kS/s Capacitor-Splitting Bypass Window SAR ADC for Wearable 12-Lead ECG Acquisition Systems

Abstract

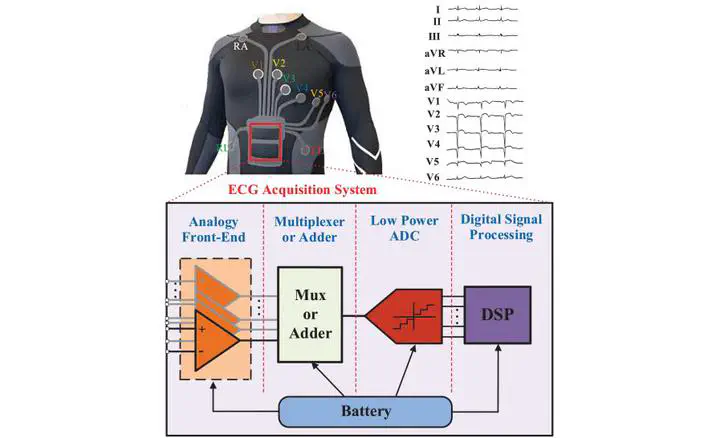

This article proposes a fully differential ten-bit energy-efficient successive approximation register (SAR) analog-to-digital converter (ADC) for wearable 12-lead electrocardiogram (ECG) acquisition system. The proposed ADC structure generates two bypass windows through capacitor splitting technique, which can skip unnecessary quantization steps. The judgment module of bypass windows only requires an XOR gate. By introducing redundant capacitors to participate in quantization, the total capacitance value is reduced by half. The proposed SAR ADC is fabricated using a standard 180-nm CMOS process. The measurement results show that it can achieve an effective number of bits (ENOBs) of 9.38 bits and a spurious-free dynamic range (SFDR) of 76.71 dB with a supply voltage of 0.6 V at a sampling rate ( FS ) of 6.94 kS/s. The power consumption is 15.61 nW when subjected to a 1.17- VPP 3.45 -kHz sinusoidal input, resulting in a figure of merit (FoM) of 3.38 fJ/conv.-step. The average power consumption for quantizing 12-lead ECG signals is approximately 12.66 nW, demonstrating the ability to achieve ultralow-power quantization of ECG signals.

Kangkang Sun

PhD Student

My research interests include circuit design of analog to digital converter for biomedical applications and SAR ADC.

Jingjing Liu

Associate Professor

My research interests include low-power smart micro-sensor integrated circuit design, image sensors, biomedical sensors, and energy harvesting circuits.

Feng Yan

PhD Student

My research interests include circuit design of analog front end for biomedical applications and sensor interfaces.

Ruihuang Wu

M.Sc.

My research interests include circuit design of delay loop lock.

Bingjun Xiong

PhD Student

My research interests include circuit design of optical receivers and references.

Zhipeng Li

PhD Student

My research interests include circuit design of image sensors and energy harvesting circuits.

Jian Guan

PhD Student

My research interests include the design of solar cells and energy harvesting circuits.
