A Fully Integrated Storage-Free Energy Harvesting System with Voltage Self-Regulation and Dual-Channel Power Extraction

Abstract

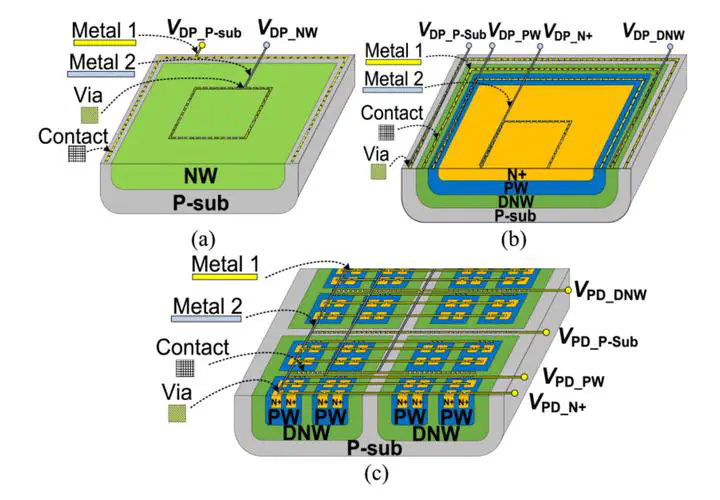

With the growing demand for self-powered operation in Internet of Things (IoT) nodes and microsensors, photovoltaic energy harvesting (EH) systems have become a key research focus. Although triple-well on-chip solar cells improve photovoltaic conversion efficiency, their multiport output characteristics pose design challenges: conventional parallel output schemes cannot address the mismatch in maximum power point (MPP) voltages among ports, thereby limiting energy extraction efficiency. Moreover, fully integrated EH systems lack external storage, and input–output coupling renders traditional voltage regulation unsuitable. To address these challenges, this article presents a fully integrated dual-channel EH system that employs a dual-port, independently boosted parallel architecture combined with a frequency-driven lightweight self-regulation mechanism, eliminating the need for conventional regulators. Measurement results show that the system achieves a stable output voltage of approximately 1.22 V, a peak end-to-end efficiency of 63.97%, and a 6.31% improvement in maximum output power, while also exhibiting reliable start-up and ripple suppression, providing valuable guidance for the design of efficient power extraction and self-regulation in on-chip photovoltaic EH systems.

Jian Guan

PhD Student

My research interests include the design of solar cells and energy harvesting circuits.

Jingjing Liu

Associate Professor

My research interests include low-power smart micro-sensor integrated circuit design, image sensors, biomedical sensors, and energy harvesting circuits.

Wenji Mo

Master’s Student

My research interests include circuit design of low-power RISC-V processors and self-powered SoCs.

Feng Yan

PhD Student

My research interests include circuit design of analog front end for biomedical applications and sensor interfaces.

Kangkang Sun

PhD Student

My research interests include circuit design of analog to digital converter for biomedical applications and SAR ADC.

Weijie Ge

PhD Student

My research interests include the design of radio frequency integrated circuits and energy harvesting circuits.
