Novel Structure of Dynamic CMOS Comparator with High Energy Efficiency

Abstract

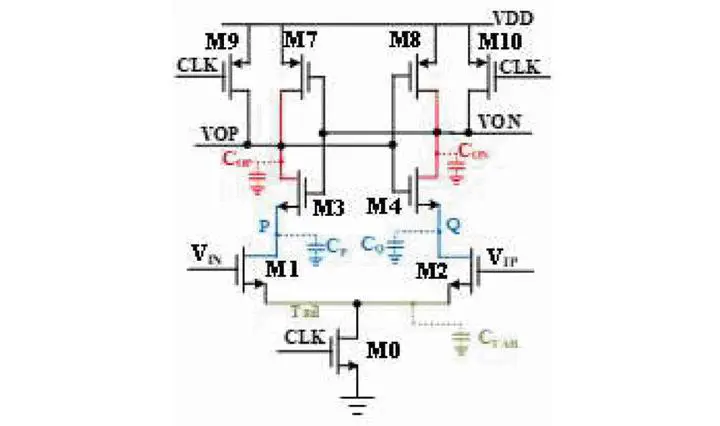

This article presents an energy-efficient dynamic CMOS comparator. By incorporating two additional NMOS transistors into the conventional Strong ARM (SA) structure, this design significantly reduces energy consumption as the differential voltage increases. Furthermore, it markedly improves key technical parameters such as precision, offset, and noise. Manufactured using a 180 nm CMOS process, the proposed comparator achieves 84 µV input-referred noise while consuming only 4.683-nW per comparison under a 1.2-V supply. This results in a figure of merit (FoM) of 0.033 nJ.µV2, representing a 53.36% reduction in power consumption compared to the conventional SA latch. These improvements are essential for energy-sensitive applications, enhancing system performance and minimizing power usage.

Kangkang Sun

PhD Student

My research interests include circuit design of analog to digital converter for biomedical applications and SAR ADC.

Xiaoqi Peng

PhD Student

My research interests include xxx.

Xinying Su

Master’s Student

My research interests include circuit design of CMOS memristor simulators and neuromorphic chips.

Weijie Ge

PhD Student

My research interests include the design of radio frequency integrated circuits and energy harvesting circuits.

Jingjing Liu

Associate Professor

My research interests include low-power smart micro-sensor integrated circuit design, image sensors, biomedical sensors, and energy harvesting circuits.
