An SDPF RISC-V Processor with Two-stage Pseudo-pipelined Architecture for IoT Applications

Abstract

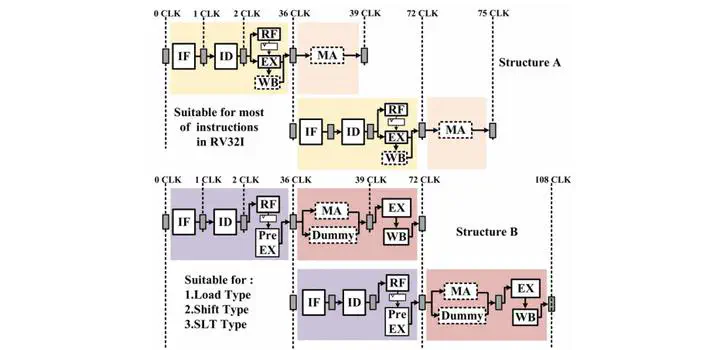

Internet of Things (IoT) nodes are required to execute lightweight tasks for sensing information and simple signal processing. Thus low-power processors serve as crucial components of highly integrated IoT smart sensors. This paper proposes a low-power RISC-V instruction set architecture (ISA) based RV32I processor for embedded IoT nodes, which follows the serial data path. To enhance the performance of the serial data path followed (SDPF) processor, a pseudo-pipelined architecture is proposed. By partitioning and combining a portion of the instruction life cycle tasks into two stages, a two-stage pseudo-pipelined structure is achieved, reducing the number of cycles per instruction (CPI) of the SDPF processor. The proposed processor is designed based on Verilog HDL, the implementation results on FPGA demonstrate that the performance is improved by 58% compared to the conventional SDPF RV32I processor. Besides, the synthesis is performed using a standard 0.18 µm CMOS process technology. Post-layout simulation results demonstrate that, the System on Chip (SoC), which consists of the proposed processor, a 2 kB IMEM and a 4 kB DMEM, achieves an average CPI of 36, an area of 0.988 mm2, and an average power consumption of 182 µW/MHz.

Wenji Mo

Master’s Student

My research interests include circuit design of low-power RISC-V processors and self-powered SoCs.

Yuchen Wang

Master’s Student

My research interests include the design of high dynamic range and multi-mode image sensors.

Haoning Sun

Master’s Student

My research interests include circuit design of analog to digital converter for biomedical applications and noise shaping SAR ADC.

Jingjing Liu

Associate Professor

My research interests include low-power smart micro-sensor integrated circuit design, image sensors, biomedical sensors, and energy harvesting circuits.
