A Resistor-Free Grounded High-Frequency Memristor Emulator

Abstract

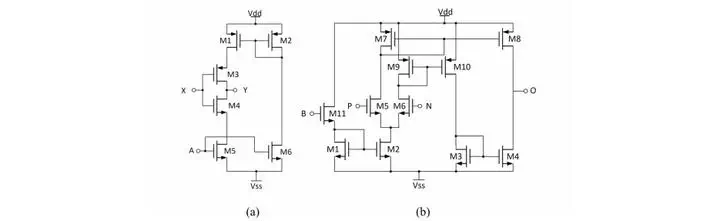

The memristor emulator circuit is an economical and effective tool that can simulate various circuit characteristics of the corresponding solid-state memristor. This paper proposes a resistor-free high frequency grounded incremental/decremental memristor emulators (MRE). It consists of a voltage-current conversion (VCC) module, an OTA and a grounded capacitor. The theoretical analysis of the proposed memristor emulator is conducted. The memristor emulator is designed using a standard 180nm CMOS technology. The simulation results show that the proposed memristor emulator demonstrate pinched hysteresis loops for the voltage-current curves with a power supply voltage of ± 0.9V and prove its memristor characteristics. The proposed design exhibits nonlinearity over a wide input voltage range and performs well at frequencies of up to 50MHz.

Xinying Su

Master’s Student

My research interests include circuit design of CMOS memristor simulators and neuromorphic chips.

Bingjun Xiong

PhD Student

My research interests include circuit design of optical receivers and references.

Jingjing Liu

Associate Professor

My research interests include low-power smart micro-sensor integrated circuit design, image sensors, biomedical sensors, and energy harvesting circuits.
